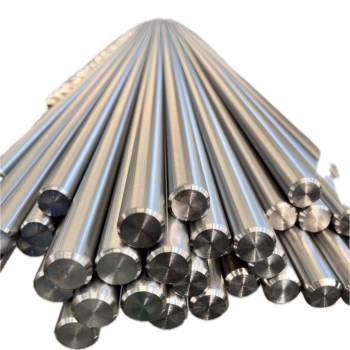

Titanium Round Bar
| Size range: | φ4mm-500mm | |
| Length: | Customize as clients need | |
| Tolerance: | h7,h9 or per client’s | |
| MOQ: | 30-100KG for regular sizes | |
| Material Grade: | CP-Ti, Grade7, Gr.9, Gr.12, Gr.23, Ti6Al4V, Ti6Al4V Eli, Ti3Al2.5V, Ti6246, Ti6242, Ti662, Ti38644, BT14,BT20. | |
| Standard: | AMS 4928, AMS 4963, AMS 4965, AMS 4967, AMS 4930, AMS 4931, AMS 4931, MIL-T 9047, WL3.7164/2, BS3TA11, AMS 4957, AMS 4958 | |
Quality Assurance
Typical Product cases

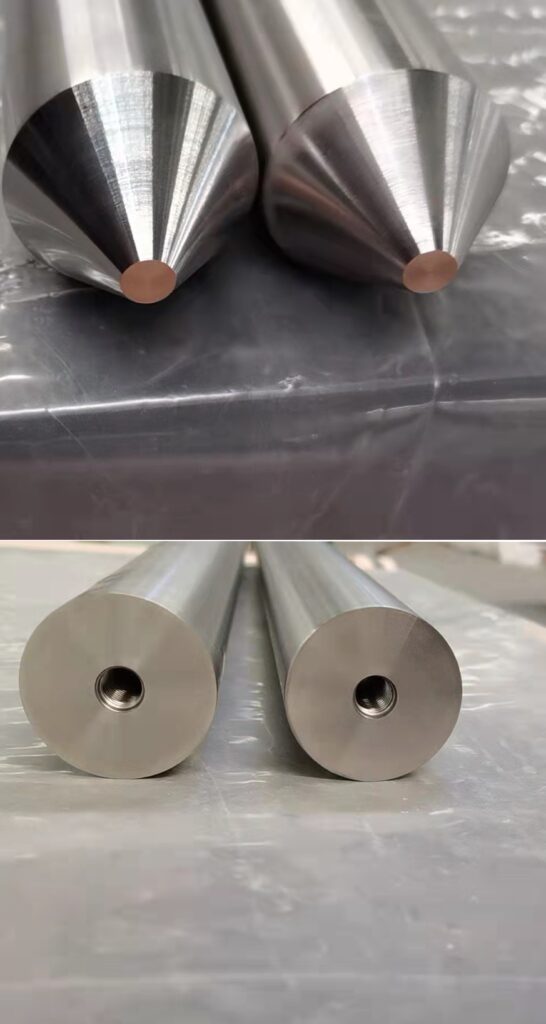

Ti-6Al-4V electrode bars for titanium powder production
Size：Dia 50mm X 400mm
Applications:
Additive Manufacturing:
3D Printing: Titanium powder produced from Ti-6Al-4V electrode bars is widely used in 3D printing for aerospace, automotive, and medical applications due to its high strength and biocompatibility.
Metal Injection Molding (MIM):
Complex Components: Titanium powder is used in MIM to produce complex components with high precision, often utilized in the aerospace and medical industries.
Thermal Spray Coatings:
Surface Coatings: Titanium powder is used in thermal spray processes to apply protective coatings on parts, enhancing their wear and corrosion resistance.
Powder Metallurgy:
Part Production: Titanium powder is used in powder metallurgy to create parts and components through processes like hot isostatic pressing (HIP) and sintering.
Ti6242 (Ti-6Al-2Sn-4Zr-2Mo) bar
Well known by its high mechanical strength and excellent material stability. It offers good corrosion resistance and could be welded. The density is 4.54 g/cc and the nominal hardness is 34HRC.
Material Specifications
ASTM UNS R54620 • AMS 4975, 4976 & 4919 • MIL T – 9046 & -9047G
Mechanical Properties
| Min. at Rome Temperature | Min. at 900℉（482 ℃） |
UTS | 130 ksi (896 Mpa) | 90 ksi (621 Mpa) |
0.2%PS | 120 ksi (827 Mpa) | 70 ksi (483 Mpa) |
Elongation in 4D | 10% | 15% |
Reduction of Aera | 25% | 35% |
Application
This high-tech material is essential in advanced markets like motorsport and commercial aerospace. It’s used in precision racing engine parts and critical hot section gas turbine components, including discs, impellers, and turbines. Additionally, the alloy finds application in various sheet metal parts, such as afterburner cans and hot airframe components.
Ti6246( Ti-6Al-2Sn-4Zr-6Mo) bar
This alloy is renowned for its superior combination of strength, toughness, and corrosion resistance, making it a preferred choice in various high-performance industries. The density is 4.65 g/cc and the nominal hardness is 39HRC
Material Specifications: ASTM UNS R56260 • AMS 4981
Min. Mechanical Properties at RT
| Form | Dia (mm) | UTS | 0.2%PS | Elongation in 4D % | Reduction of Aera % | ||
| L | T | L | T | ||||
| Wire | ≤12.7 | 1172 | 1103 | 10 | 8 | 20 | 15 |
| Bars | 12.7-63.5 | 1172 | 1103 | 10 | 8 | 20 | 15 |
| Bars | 63.5-76.2 | 1138 | 1069 | 8 | 6 | 15 | 12 |
| Forgings | ≤76.2 | 1172 | 1103 | 10 | 8 | 20 | 15 |
| Bars and Forgings | 76.2-101.6 | 1103 | 1034 | 8 | 6 | 15 | 12 |
Ti38644(Ti- 3Al-8V-6Cr-4Mo-4Zr) bar
High-strength, high-performance beta titanium alloy. Renowned for its remarkable mechanical properties and superior corrosion resistance, this alloy is a preferred choice for applications requiring robustness and reliability under extreme conditions.
Material Specifications: AMS 4957 • AMS 4958 • ASTM B348 Gr.19
Min. Mechanical Properties | ||||
Status | UTS | 0.2%PS | Elongation in 4D | Reduction of Area (%) |
Properties for solution treated condition. | 115 ksi (793 Mpa) | 110 ksi (759 Mpa) | 15 | 25 |
Properties for solution treated and aged condition–Moderate strength | 135 ksi (930 Mpa) | 130-159 ksi | 10 | 20 |
Properties for solution treated and aged condition–High strength | 165 ksi (1138 Mpa) | 160-185 ksi | 5 | 20 |
Applications : Used in airframe structures and other critical components where high strength-to-weight ratio and fatigue resistance are crucial.
Engine Parts: Suitable for high-temperature engine components requiring thermal stability and strength. Utilized in high-performance vehicles for parts such as suspension systems, connecting rods, and valves, where weight reduction and strength are essential.
Ti6Al4V Eli medical bar ASTM F136
Size: Dia 1.5mm-50mm
Tolerance: h7 or per customer’s
Length：Customizable according to needs, generally from 3 meters
MOQ: 30KG
