Titanium forging
| Products | Titanium drawing，disc, ring, block, bar, shaft |
| Grade | Gr.1, Gr.2, Gr.3, Gr.4, Gr.5, Gr.7, Gr.9, Gr.11， Gr.12，Gr.16，Gr.19 Gr.23, Ti811, Ti6242, Ti6246 |
| Standard | AMS4979, AMS4981 ASTM B348, ASTM B381, AMS4928, AMS9047, AMS4973, AMS4975, AMS4976, AMS4978 |
Quality Assurance
Typical Product cases

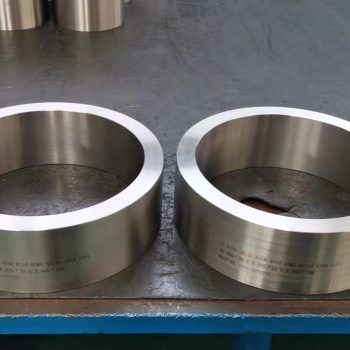

Titanium ring Gr.2 ASTMB348 ASME SB381
Dimension：400mmOD x 350mmID x 100mm THK
Tolerance：+/-3mm
QTY: 100 pcs
Titanium disc ASTMB381 Gr.7
OD：300mm
THK：40mm
QTY：1872 pcs
Main Applications: Aerospace，Bicycles and Sports Equipment，Marine Engineering，Automotive Engineering，Medical Devices:
Titanium welded neck flange Gr.12
Dimension：6″ x 4″ CLASS 300 SCH 80
Length：5.25″
QTY: 10 pcs
Titanium drawing Gr.12
Dimension：15.5″OD x 6.25″ID x 14″ THK
Tolerance：+/-0.05″
QTY: 5 pcs
Titanium block Gr.2 ASTM B381
Dimension： 9.0″ x 12.00″ x 16.25″
Tolerance：-0/+0.25″
Titanium shaft Gr.12 ASTM B381
Dimension： 13.25″Dia x 114″
Tolerance：-/+0.13“
