What is ASTM B338: Gr9 Titanium Tubing?

Are you confused by technical material standards? Seeing a long string of codes like "ASTM B338 Gr9" can make you worry about ordering the wrong tubing and causing project delays.

ASTM B338 is the international standard covering seamless and welded titanium tubes designed for heat exchangers and condensers. Grade 9, or Gr9, specifies a titanium alloy (Ti-3Al-2.5V) known for its high strength, formability, and weldability, making it a versatile high-performance material.

When a client like David, a procurement manager, sees this specification, he needs to know exactly what it means for his project. It isn’t just a random set of numbers. It’s a guarantee of chemical composition, mechanical properties, and manufacturing quality. Over my decade in titanium sourcing, I’ve helped countless partners decode these standards to find the perfect material. Let’s explore what makes this specific grade of tubing so valuable and where it fits best.

---

What are the Benefits of Gr9 Titanium Tubing?

Are you tired of using materials that fail under stress or corrode in harsh conditions? Frequent replacements and maintenance cut into your profits and slow down your operations.

Grade 9 titanium tubing offers a unique balance of properties. Its primary benefits are a high strength-to-weight ratio¹, excellent corrosion resistance² (especially in saltwater), and superior fatigue strength³, all while maintaining good formability and weldability for ease of manufacturing.

Based on years of exporting titanium tubes globally, we’ve found Gr9’s high fatigue resistance is a game-changer. It makes it the preferred material for lightweight structural components⁴ that face constant vibration or stress, like in aerospace and high-performance racing bikes. Furthermore, our clients in offshore engineering⁵ projects have chosen Gr9 over stainless steel because it resists chloride-induced corrosion in saltwater environments. This significantly increases equipment lifespan and reduces long-term costs. It is a material that solves problems where other metals simply cannot keep up, offering long-term reliability.

Key Performance Advantages

The combination of properties is what makes Gr9 so special. Here is how it stands out:

Benefit	Description	Why It Matters
High Strength-to-Weight	Offers strength comparable to some steels at nearly half the density.	Reduces overall weight in applications like aircraft and vehicles, improving fuel efficiency.
Excellent Corrosion Resistance	Forms a stable, self-healing oxide layer that protects it from rust and chemicals.	Ideal for marine, chemical, and offshore environments where other metals would degrade.
Superior Fatigue Strength	Can withstand repeated cycles of stress and vibration without failing.	Critical for components like hydraulic lines and bike frames that experience constant loading.
Good Formability	Can be cold-worked and bent into complex shapes without compromising its integrity.	Allows for versatile and intricate designs in manufacturing.

Looking for High-Quality Titanium Tubes and Pipes?

Explore our range of titanium tubing and piping solutions suited for aerospace, medical, and industrial applications. Our products are designed to meet rigorous standards and provide reliable performance in various environments.

View Titanium Products →

What are the Applications of Gr9 Titanium Tubing?

You know the benefits, but are you unsure if Gr9 is the right fit for your specific product? Choosing a material that is over-engineered can inflate costs, while an under-engineered choice risks failure.

Grade 9 titanium tubing is used in applications that demand a combination of light weight, high strength, and corrosion resistance. Key uses include aerospace hydraulic lines, high-performance bicycle frames, golf clubs, medical instruments, and chemical processing equipment.

The versatility of Grade 9 means it appears in a wide range of advanced industries. In aerospace, its ability to handle high-pressure hydraulic fluids while saving precious weight is invaluable. For premium sports equipment, that same strength-to-weight ratio translates directly into better performance for the athlete. In the chemical industry, its ability to handle corrosive fluids without degrading ensures safety and reliability. I’ve personally worked with clients who use it for everything from subsea sensor housings to custom racing exhaust systems. Its unique profile allows engineers to push the boundaries of design and performance.

Where Gr9 Shines: Top Industries

Industry	Specific Application	Reason for Choosing Gr9
Aerospace	Hydraulic and fuel lines	High fatigue strength3, light weight, reliability.
Sports Equipment	Bicycle frames, wheelchair frames, golf shafts	Excellent strength-to-weight ratio for speed and agility.
Marine/Offshore	Seawater cooling pipes, sensor housings	Complete immunity to saltwater corrosion.
Chemical Processing	Heat exchanger tubing, process piping	Resistance to a wide range of corrosive chemicals.

---

What is the ASME Code for Titanium Pipe?

Do you need to ensure your piping system complies with industry safety codes? Using materials that don’t meet standards like ASME can result in failed inspections, project rejection, and serious safety risks.

The main ASME code governing titanium process piping is ASME B31.3, the "Process Piping" code. This standard dictates the rules for designing, fabricating, and testing piping systems found in chemical plants, refineries, and similar industrial facilities. ASTM standards define the material; ASME codes define how to build with it.

This is an important distinction for my industrial clients. The ASTM B338 standard tells you what the tube is made of and what its properties are. The ASME B31.3 code tells you how to use that tube to build a safe and reliable piping system. They work together. An engineer designs a system according to the rules in ASME B31.3, and in that design, they will specify a material that meets a standard like ASTM B338. So, if you’re building an industrial piping system, you’ll be working with both. Understanding this relationship is key to ensuring your project is both compliant and safe.

ASTM vs. ASME: What’s the Difference?

Think of it this way: ASTM is the recipe, and ASME is the cookbook for building a full system.

Standard Type	Focus	Example	Purpose
ASTM	Material Specification	ASTM B338 Gr9	Defines the chemical, mechanical, and physical properties of the tube itself.
ASME	System Design & Safety	ASME B31.3	Provides rules for how to design and construct a safe piping system using those materials.

---

What is the Difference Between Grade 2 and Grade 9 Titanium?

You see both Grade 2 and Grade 9 offered, and choosing between them can be difficult. Making the wrong choice could mean paying for performance you don’t need or selecting a material that isn’t strong enough.

The key difference lies in strength and composition. Grade 2 is commercially pure titanium, valued for its maximum corrosion resistance² and formability. Grade 9 is a titanium alloy (Ti-3Al-2.5V) that is over twice as strong as Grade 2, offering a much better strength-to-weight ratio.

As one of China’s few integrated producers, from titanium sponge to finished tube, we often help customers make this exact decision. The choice is simple when you define your priority. If your primary need is resisting corrosion in a non-structural part, Grade 2 is often the most cost-effective and easiest to work with. However, if you need that same corrosion resistance but also require the part to be strong, light, and handle stress, Grade 9 is the clear winner. We help clients pick Grade 2 for general corrosion applications and guide them to Grade 9 when strength-to-weight is mission-critical, like in custom automotive tubing.

A Head-to-Head Comparison

Feature	Grade 2 (Commercially Pure)	Grade 9 (Ti-3Al-2.5V Alloy)	Winner For…
Strength	Lower	Significantly Higher (~25% stronger)	Grade 9 (Structural parts)
Corrosion Resistance	Excellent	Excellent	Tie (Both are superb)
Formability	Excellent	Good	Grade 2 (Deep drawing/complex bends)
Weldability	Excellent	Good	Grade 2 (Slightly easier to weld)
Cost	Lower	Higher	Grade 2 (Budget-focused projects)
Best Application	Chemical tanks, architectural panels	Aerospace tubing, bike frames	Depends on Need

Conclusion

ASTM B338 Gr9 defines a versatile, high-strength titanium alloy tubing standard. Its mix of strength, low weight, and corrosion resistance makes it a top choice for demanding performance applications.

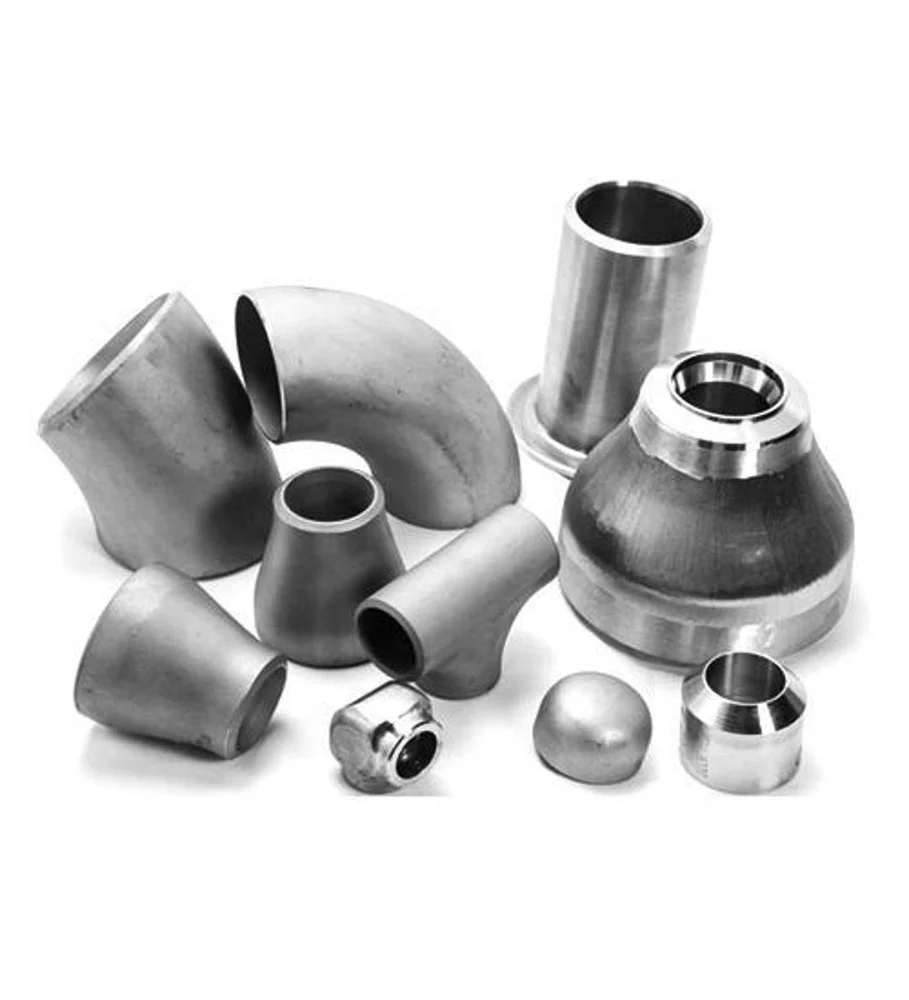

Looking for Durable Titanium Fittings?
